Milling models gallery

Below I paste all elements I've done at PCNC-1100 milling machine during three years at the University of Nicolaus Copernicus.

Rys. 1 - Breadboard for BEC group

Rys. 2 - CB radio holder for my car

Rys. 3 - CB radio holder for my car (folded)

Rys. 4 - Heatsink gasket

Rys. 5 - Optical bench for Coherent laser

Rys. 6 - Heat sink for laser chiller

Rys. 7 - Cover complementary to the previous heat sink

Rys. 8 - Laser chiller (assembly)

Rys. 9 - Optical breadboard

Rys. 10 - Precise optical holder

Rys. 11 - Front panel of an audio amplifier (front)

Rys. 12 - Front panel of an audio amplifier (section)

Rys. 13 - Front panel of an audio amplifier (back)

Rys. 14 - Doughnut shaped PBC

Rys. 15 - Radio frequency amplifier case

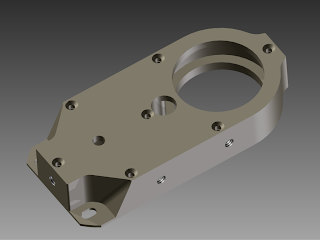

Rys. 16 - Half/quarter waveplate rotary motorized mount (assembly)

Rys. 17 - Half/quarter waveplate rotary motorized mount (body)

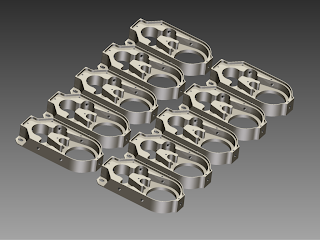

Rys. 18 - Half/quarter waveplate rotary motorized mount (pattern for milling)

Rys. 19 - Half/quarter waveplate rotary motorized mount (cover)

Rys. 20 - Stepper motor driver front panel

Rys. 21 - Water tank walls

Rys. 22 - Laser holder for HP pen plotter

Rys. 23 - Laser holder for HP pen plotter
